HGRT HGS 8oM Portable Printer

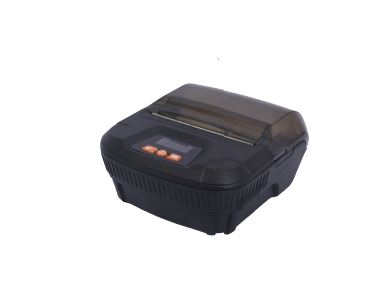

HGRT HGS 80M Portable Printer

" alt="" class="so-widget-image"/>

HGS 58M / HGS 80M are high speed portable thermal printers designed for mobile bill applications.
Integrated into a number of cutting-edge technologies
speed printing, printing density intelligent adjustable both models are real combination of technology and
practical
Features:  Support 1D, 2D bar code printing
 While compatible with Windows, Linux, Android and IOS systems
 Support USB, COM, communications
 Supports sound and light reminder when  Optional Cover for both models

Specification:

Print  parameter Printing Method Thermal Line
Printing Width 48mm 72mm
Resolution 384 dots/line(8dots/mm,203dpi)
Printing Speed 70mm/sec 90mm/sec

Interface USB USB, RS232
Line spacing 3.75mm(Can adjust line spacing by command)
Line No. Font A:32 character /Line

Font B:42 character/Line

Simple, traditional Chinese-16 lines

Font A:48 character /Line

Font B:64 character/Line

Simple, traditional Chinese-24 lines

Character The standard GB18030 simplified / traditional Chinese characters library Character Size ANK character,Font A:1.5×3.0mm(12×24 点)

Font B:1.1×2.1mm(9×17 点) Simplified/Traditional:3.0×3.0mm(24×24 点)

Bar code character Extended  character set PC437、 KataKana、 PC850、 PC860、 PC863、PC865、 WPC1251、 PC866、

MIK、PC755、Iran、Reserve、PC862、WPC1252、WPC1253、PC852、PC858、Iran II、Latvian、PC864、 ISO-8859-1、PC737、

WPC1257、Thai、PC720、PC855、PC857、WPC1250、PC775、WPC1254、WPC1255、 WPC1256、WPC1258、ISO-8859-2、ISO-8859-3、ISO-8859-4、ISO-8859-5、

ISO-8859-6、ISO-8859-7、ISO-8859-8、ISO-8859-9、ISO-8859-15、Thai2、PC856、

Bar code 1D:UPC-A;UPC-E;EAN-13;EAN-8;CODE39;CODE93;CODABAR;ITF25;CODE128

2D:PDF417、QRCODE、DATA MATRIX

Graphics printing Graphics printing Supports bitmap download and print Power saving

Mode

Smart power saving Yes Variable  speed printing Yes Detection Sensor No Paper Detection Indicator Power Display Yes Charge Indicator Yes Lack of paper Yes Beep No Paper, Abnormal Printing Paper Type Thermal Width 57.5±0.5mm 79.5±0.5mm Thickness ≤0.12mm Diameter ≤40mm Feed Easy(Clamshell feed) Print Command Commands ESC/POS Power Type USB Capacity 2200mAh/7.4V 2500mAh/7.4V Charger DC 8.4V/1A Buffer Input 4KB NV Flash 40KB Physical features Weight 200G Box Dimension 0.25 kg ( net ) / 0.65 kg ( pack ) Environment Operating Temperature: 0 ~ 50 ℃, humidity: 10 ~ 80 % Storage Temperature: -20 ~ 60 ℃, humidity: 10 ~ 90 % ( no dew ) Reliability Print head life 50KM(Printing Density≤12.5) Software Driver Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1, Win 10
